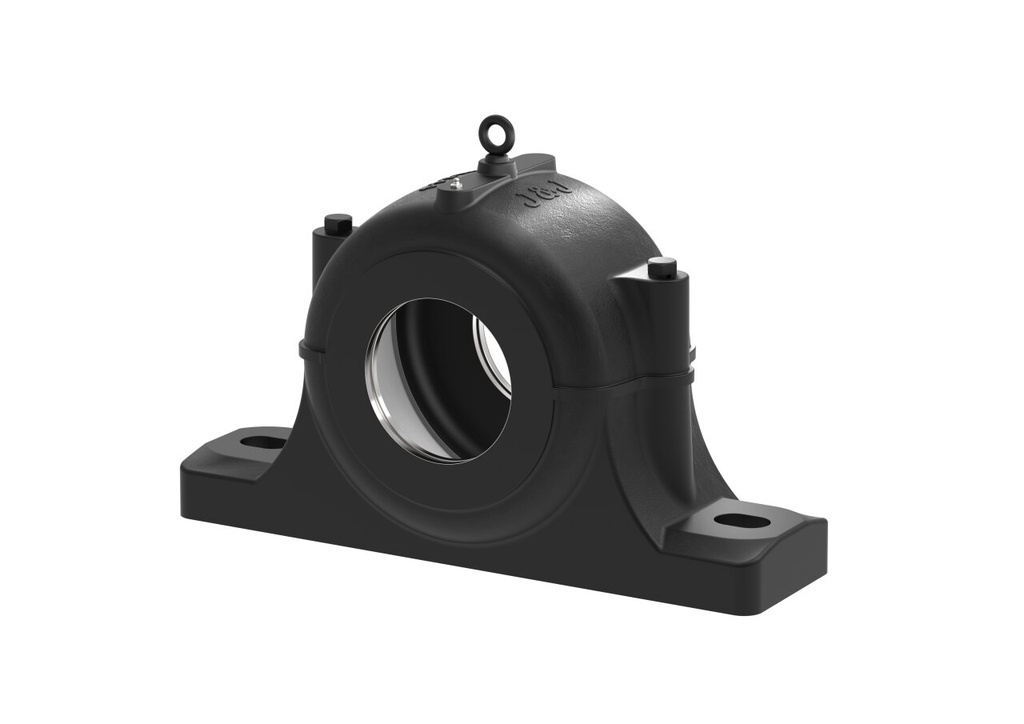

S 522
Details
Display in:
Dimensions |
|
|---|---|
| Diameter of bearing seat | 52 mm |
| Width of bearing seat | 25 mm |
| Centre height (pillow block) | 40 mm |
| Centre distance between bolt holes | 130 mm |
| Attachment bolt diameter | 12 mm |
Properties |
|
|---|---|
| Housing type | Plummer/pillow block |
| Housing configuration | Two-piece |
| Mounting arrangement | Through shaft/Shaft end |
| Number of bolt holes for fasteners | 2 |
| Material, housing | Cast iron |
| Bearing housing seal type | Without |
| Housing lubrication feature/possibility | Grease |
| Housing Designation | S 522 |
| mm | 100 |
| in | 4.0 |
| A | 160 |
| A1 | 120 |
| H | 245 |
| H1 | 125 |
| H2 | 36 |
| J | 350 |
| L | 420 |
| G | 0.875 |
| Weight Per Nos. (kg.) | 23.0 |
| Sample | 108 mm |
